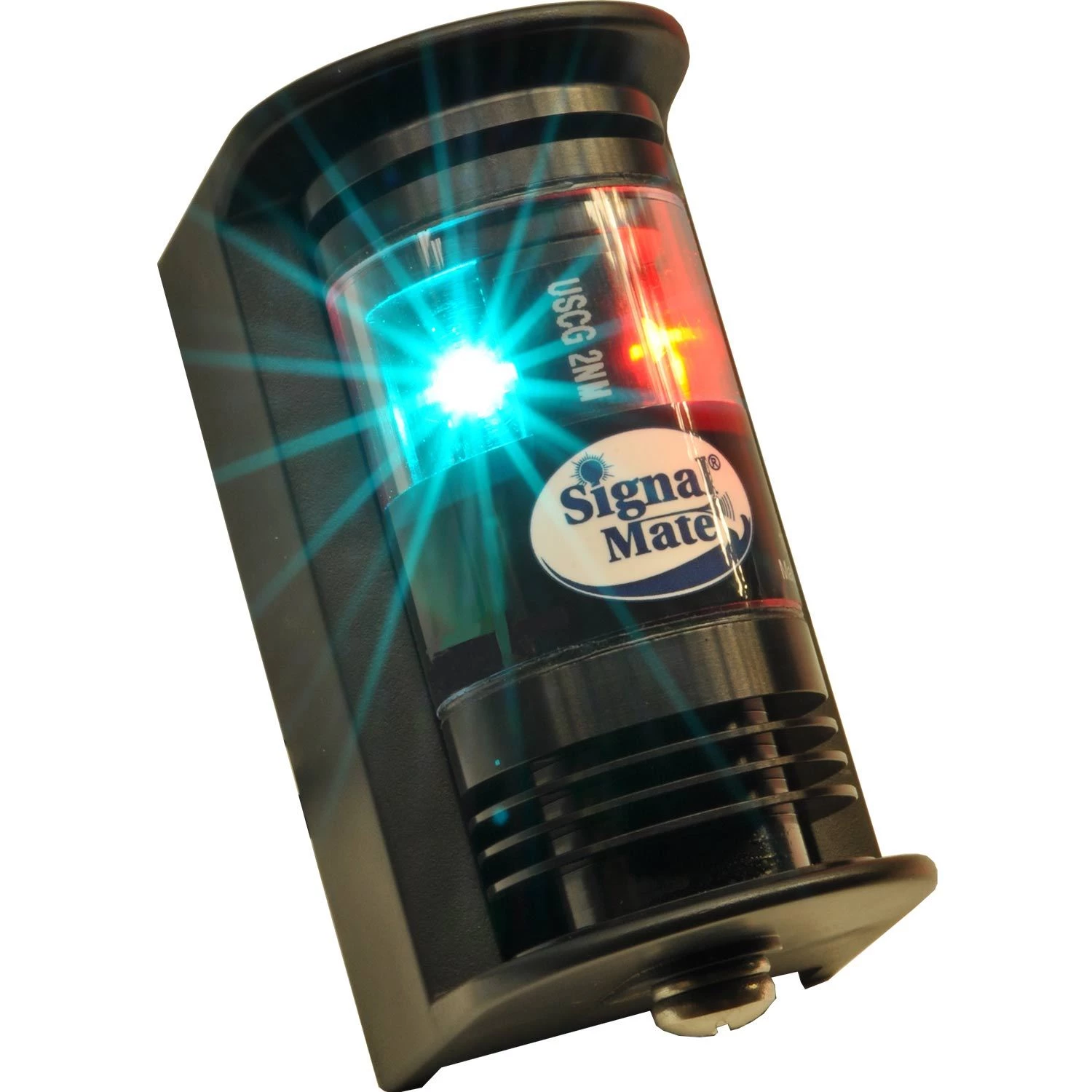

SIGNAL MATE Navigation Lights Side Mount LED Bi-Color Navigation Light

Signal Mate’s 225° Bi-Color LED Navigation Light provides Port (Red) and Starboard (Green) lights in a single fixture.

This navigation light is small but robust, featuring latest technology high-brightness LEDs. Used by several branches of the U.S. Military and USCG, this light is USCG-certified, satisfies requirements of COL REG 72 and is RoHs compliant. It reflects unique innovations in design and fabrication that limit or eliminate substances dangerous to the environment without sacrificing performance or durability. Constant brightness over the full operating range of 10V to 30V DC ensures the light will meet or exceed nautical mile requirements if the battery voltage drops. Active & passive RF filtering to prevent radio interference. Reverse polarity-protected, surge-protected, waterproof and vibration-proof.

Specifications:

• Visibility: 2 NM
• Application: Sail and power boats up to 65′
• Construction: Black hard coated anodized aluminum construction, polycarbonate lens
• Light Source: Single LED, 50,000 hour full-brightness life
• Voltage Range: 10 to 30 VDC
• Current Draw: 0.180A @ 12V
• Dimensions: 3 1/4″H x 1 1/2″ Dia.
• Environment: Waterproof, submersible
• Wiring: 2-conductor 20 AWG marine grade, 2 1/2′ cable included
• Mounting: 1/4 x 20 female threads top and bottom or optional brackets
• Weight: 6.4 oz.
• Certifications: USCG 2NM, ABYC-A16, COLREGS ’72
• Warranty: 5 years
