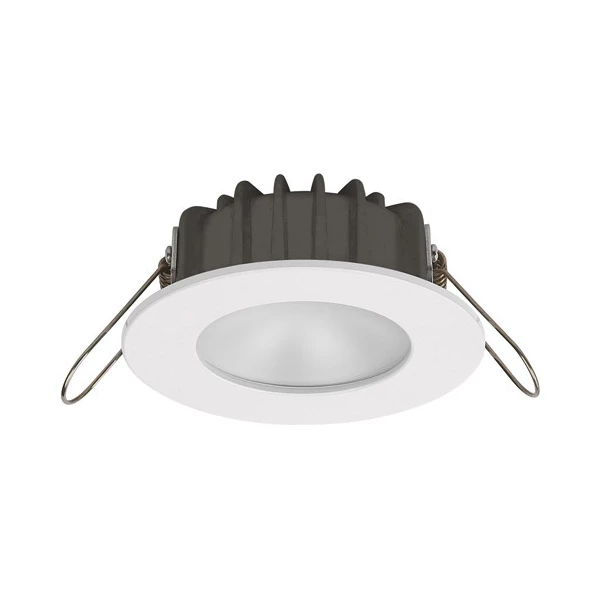

IMTRA CORPORATION Courtesy Lights PowerLED Downlight 10 To 30V DC White Trim Ring Cool White 2 X 3 Watts High Flux LED IP65

The Ventura powerLED recessed spot is Imtra’s most popular PowerLED marine lighting spot. Its light output exceeds that of legacy 20 Watts halogen spots while consuming 80% less power. So it is easy to see why so many boat builders have made the switch to Ventura. Proprietary drive electronics & carefully designed optics result in a more blended aperture appearance (vs. halogen) resulting in light which is free of annoying artifacts or distracting hot spots. Imtra’s carefully designed thermal management system results in maximum life with minimal lumens depreciation over its working life (approximately 50000 hr). And like all of Imtra PowerLED spots & fixtures, the Ventura is 100% dimmable when used with Imtra’s power-saving PWM momentary digital dimmer. Ventura’s ultra-thin bezel profile blends in nicely with hard or soft headliners. Several finishes available along with choice of LED colors, including dimmable bi-color models. The Ventura conveniently & firmly installs with self-adjusting stainless steel springs. Made in the USA & confidently offered with a 5 years warranty!

Features & Benefits:

Ultra flat stainless steel bezel

High lumen output

Solid-state circuitry

Minimal power consumption

Completely sealed LED sub-assembly

Integrated drive electronics (no external driver)

PWM dimmer interface

LED Color: Cool White

Trim Ring Material: Stainless Steel

Trim Ring Finish: White

Lens Material: Frosted Glass

Method: Spring Mount

IP Rating: IP65

Electrical Protections: Reverse Polarity, 200 Volts spike protection, Transient Protection

Beam Angle: 90 Degrees

Lifetime Hours: 50000 hr (70% Light Output)

Luminous Flux: 258 lumens

Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated

Halogen Equivalency: 25 Watts

Color Rendering Index (CRI): 66

Trim Ring Dimensions: 3.18″ Diameter x 0.12″ Height

Recessed Depth: 1.14″

Cutout Diameter: 2.63″

Correlated Color Temperature (CCT): 6100K

Dimmer Module: ILIM80120

Dimmer Interface: Pulse Width Modulation

Driver: Integrated

Dimmer Control Interface: 1P/1T NO or 1P/2T NO/NO Momentary Push Button Switch

Dimming Range: 10 to 100%
