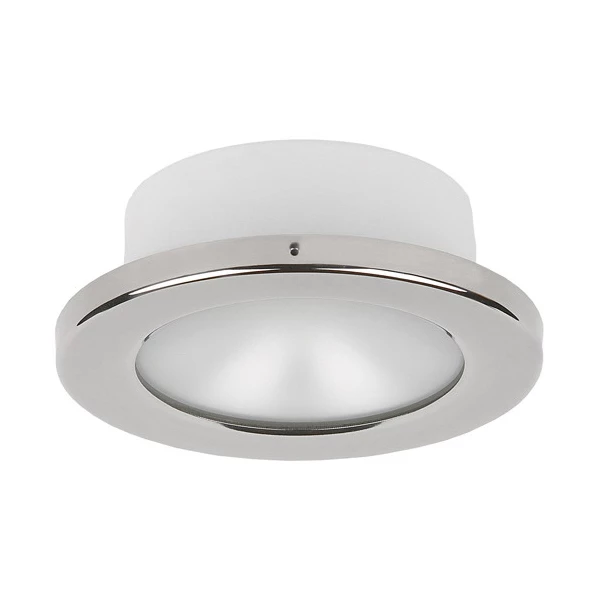

IMTRA CORPORATION Courtesy Lights PowerLED Downlight 10 To 30V DC Stainless Steel Cool White 2 X 3 Watts LED Frosted Lens IP65

The Tacoma 105 PowerLED is the latest in a Series of four high-output downlights bridging the gap between the smaller PowerLED & the larger Tacoma 155. An ideal ceiling spot for mid to large sized water craft. The Tacoma 105 incorporates the latest duo-chip technology to deliver exceptionally high lumen output. Its custom designed reflector & frosted lens combine for a smooth aperture appearance resulting in a symmetric & wide beam light pattern without the distracting striations that are common with traditional halogen & incandescent marine lighting.

Features & Benefits:

Stainless steel twist-on trim ring

Shallow installation depth

Integrated drive electronics

PWM dimming interface

No radiated heat

Substantial power savings

High lumen output (equivalent to 25 Watts halogen)

Cooler cabin temperatures

Maintenance-free; no more bulb changes

Electrical Protections:

Reverse polarity

200 Volts spike protection

Transient Protection

LED Color: Cool White

Trim Ring Material: Stainless Steel

Trim Ring Finish: Stainless steel

Lens Material: Tempered Sanded Glass

Method: Screw Mount

IP Rating: IP65

Beam Angle: 84 Degrees

Lifetime Hours: 50000 hr (70% Light Output)

Luminous Flux: 305 lumens

Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated

Halogen Equivalency: 25 Watts

Color Rendering Index (CRI): 78

Trim Ring Dimensions: 4.134″ Diameter x 0.35″ Height

Recessed Depth: 1.361″

Cutout Diameter: 3.031″

Correlated Color Temperature (CCT): 6500K

Dimmer Module: ILIM80120

Dimmer Interface: Pulse Width Modulation
