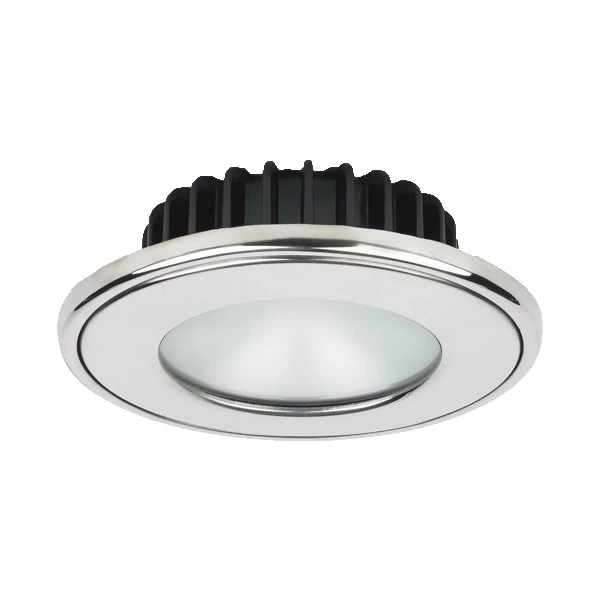

IMTRA CORPORATION Courtesy Lights PowerLED Bi-Color Downlight 10 To 30V DC Stainless Steel Trim Ring Warm White/Blue Frosted Lens IP65

Part of the family of down lights, is distinguished by a stylishly placed groove feature that runs just inside the edge of the decorative bezel. This bi-color version offers a full-brightness white LED (warm white or cool white) that will match other Imtra PowerLED spots & fixtures in both style & light output with the addition of a secondary color. Both LED colors are fully dimmable with the use of the PWM dimmer & a momentary switch. A 3-position switch may be used to toggle between the two different LED colors & full off. This boat light is ideally suited for the helm area & night-time navigation. Dimming: For consistent color temperature & full dimming range, use with the PowerLED dimmer module, ILIM80120.

Features & Benefits:

Low profile design for areas with limited ceiling space

Built-in driver – no complicated wiring

Both LED colors fully dimmable

No radiated heat

Low power consumption

Solid-state circuitry (shock/vibration proof)

Completely sealed LED sub-assembly

LED Color: Warm White/Blue

Trim Ring Material: Stainless Steel

Trim Ring Finish: Stainless Steel

Lens Material: Frosted Glass

Method: Screw Mount

IP Rating: IP65

Electrical Protections: Reverse Polarity, 200 Volts spike protection, Transient Protection

Beam Angle: 100 Degrees

Lifetime Hours: 50000 hr (70% Light Output)

Luminous Flux: 201 lumens

Certification & Compliance: CE-EMC, RoHS, UL 1598, UL1149, UL 8750, CSA C22.2#250.0, Class III, F-Rated

Halogen Equivalency: 25 Watts

Color Rendering Index (CRI): 83

Trim Ring Dimensions: 3.71″ Diameter x 0.26″ Height

Recessed Depth: 0.92″

Cutout Diameter: 2 1/2″

Correlated Color Temperature (CCT): 2800K

Dimmer Module: ILIM80120

Dimmer Interface: Pulse Width Modulation
