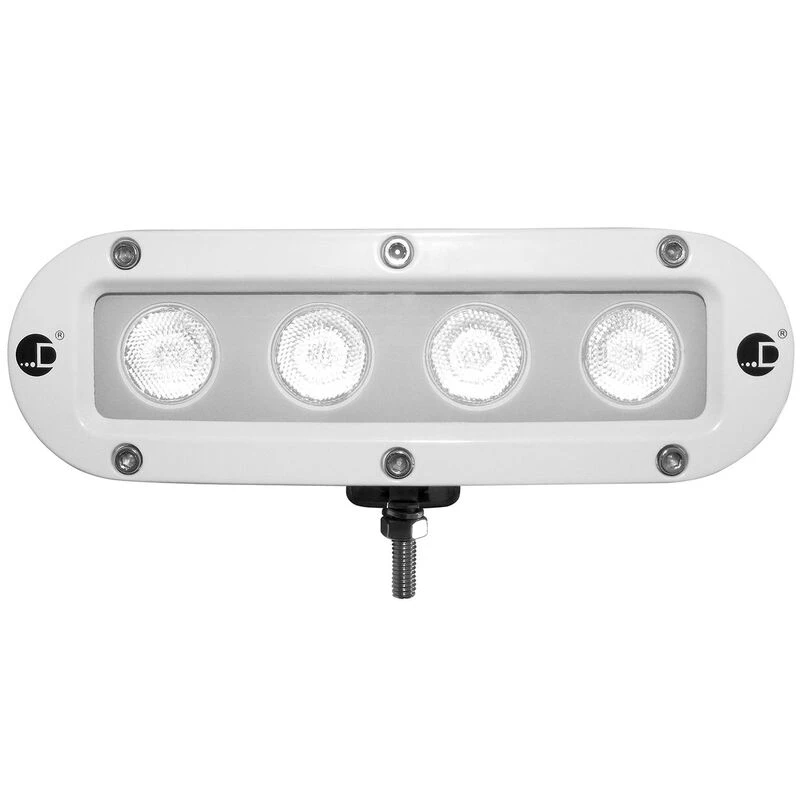

DR. LED Spreader Lights Kevin X4™ LED Spreader/Deck/Rail Light

Very bright, ruggedly constructed, the Kevin X4™ uses an amazingly low amount of power.

The Kevin is a general purpose waterproof light with four US made high-power LEDs. This light is fabricated from the highest quality components to assure long life and trouble-free functioning.

Die cast aluminum housing provides ample heat sinking to the LEDs to ensure long life operation. Their patented internal circuitry provides consistent brightness and makes them immune to life-shortening voltage fluctuations. Their incredibly low power draw (0.8A @ 12V) makes them the perfect way to reduce energy consumption.

Key Features

• For your yacht or your yard
• For your dock or your deck

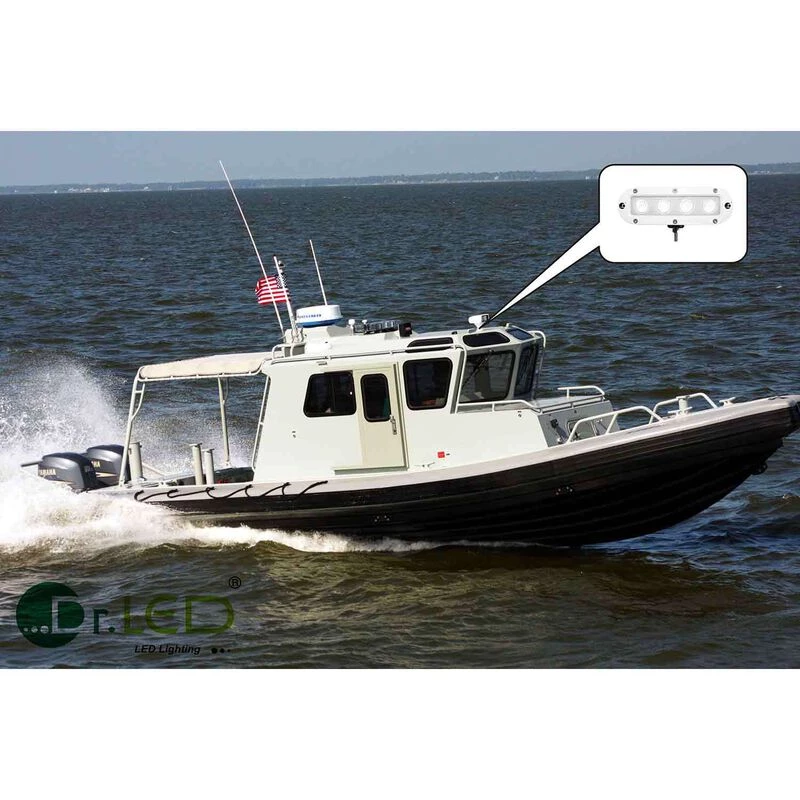

• Designed to be mounted up to 30′ above deck with aerodynamic shape
• ADC12 high purity die cast aluminum housing and lens bezel provide ample heat sinking as well as ingress protection to ensure a long operational life
• Marine-grade three-stage durable UV 3800 white powdercoated finish
• Multi-voltage 12V DC or 24V DC or 12V AC
• Works on most low voltage outdoor lighting systems
• Instant on, no warm-up of bulb needed
• Long service life, with a 50,000-hour rated lifespan of the US-made LEDs
• Modern styling and compact design
• Not hot, warm to the touch
• Shockproof, ultra-rugged with no filament to burn out or break
• Input Voltage: 10-30V DC or 12V AC
• Current Draw: ~0.8A @ 12V, ~0.4A @ 24V
• Power Consumption: ~10W
• Light Output: ~600 Lumens
• Main Beam Angle: ~25 degrees
• Luminance @ 1 Meter (39.4″): ~2400 lux
• Color Temperature: ~6000 K
• Ingress Rating: IP68
• Lens Material: tempered glass
• Fixture Material: Die cast powder coated aluminum body
• Fixture Dimensions: 150 mm width, 40 mm height, 60 mm depth (5.9” W X 1.6” H X 2.4”D
• Mechanical Connection: Requires one 1/4″ dia. hole (1/4 20 nut)
• Electrical Connection: 4″ pigtail cable
• Weight: ~ 16 oz
