AQUALUMA Gen IV Thru-Hull Underwater Lights

Aqualuma Gen IV Thru-Hull Underwater Lights boast an incredibly strong, one-piece, impact-resistant polymer housing. They can be purchased as a complete assembly (light module with thru-hull case) or as an upgrade that fits into a previously-installed Aqualuma Gen I, II or III thru-hull case. Unlike surface-mount underwater lights, Aqualuma Thru-Hull Underwater Lights can be replaced or upgraded from inside the boat—there is no need to haul out. Lights feature 8x standard and 4x wide angle elliptical optics which create a deep penetrating and wide flat beam of light. Installation is facilitated by the simple two-wire connection to power and each light includes 12′ of tinned wire cable. No bonding or anodes are required.

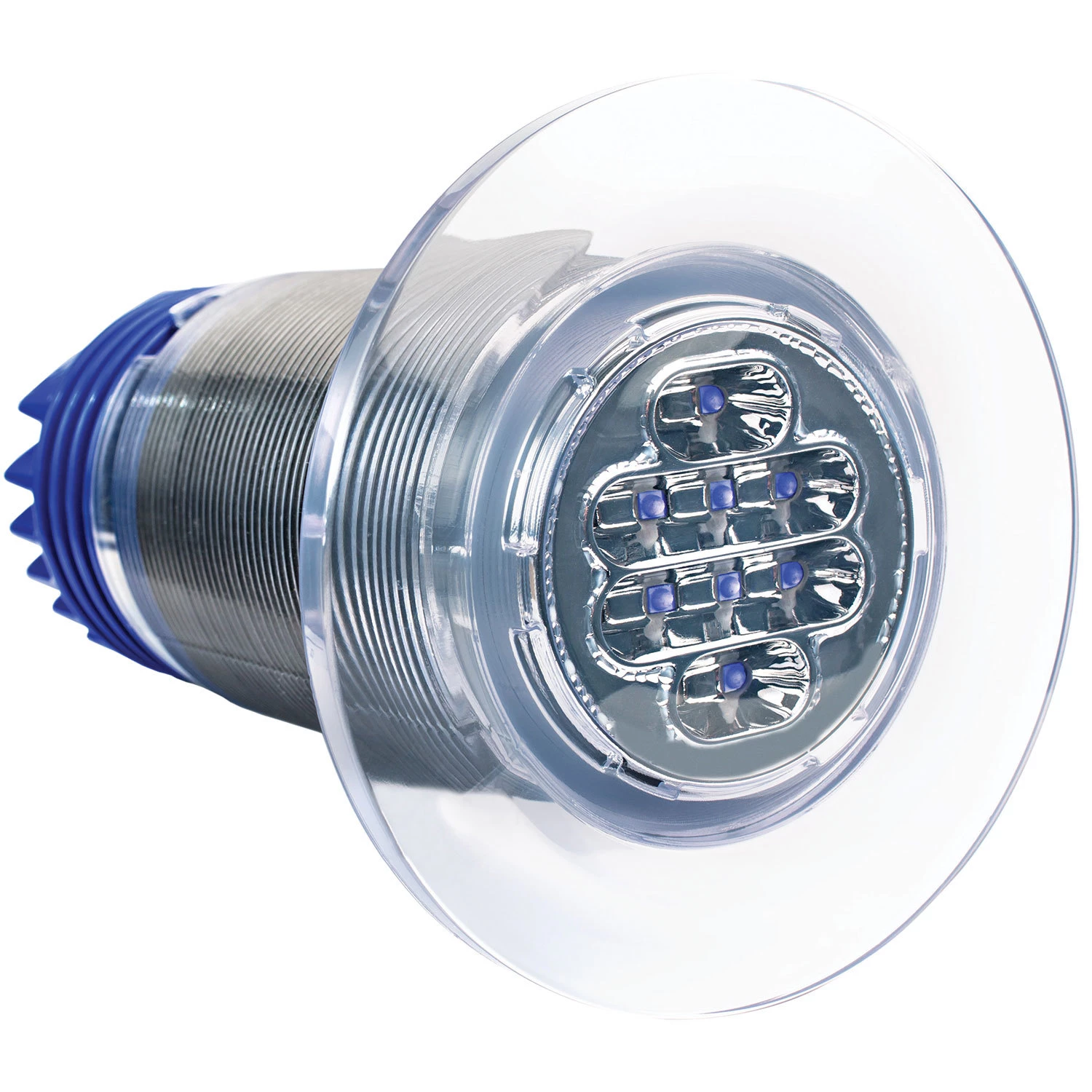

*Pictured image is of 12-LED light.

• Bulb Type: LED
• Power Requirements: 12V or 24V DC
• Fixture Material: Chemical- and impact-resistant polymer
• Mounting: Thru-Hull
• Warranty: Three years





Model	LED	Lumens	Color of Light	Dimensions	Cutout Diameter	Draw@ 12V/24V
16297657	6-LED	1725	White	4 9/16″L (4″ dia. flange and nut)	2 3/8″	1.0A/0.5A
16297665	6-LED	4900	Blue	4 9/16″L (4″ dia. flange and nut)	2 3/8″	1.0A/0.5A
16297673	12-LED	3608	White	6 5/16″L (4 3/4″ dia. flange and nut)	3″	2.0A/1.0A
16297681	12-LED	9990	Blue	6 5/16″L (4 3/4″ dia. flange and nut)	3″	2.0A/1.0A
16297699	18-LED	4920	White	6 5/16″L (4 3/4″ dia. flange and nut)	3″	2.6A/1.3A
16297707	18-LED	14100	Blue	6 5/16″L (4 3/4″ dia. flange and nut)	3″	2.6A/1.3A
16297715	18-LED	9525	WhiteBlue	6 5/16″L (4 3/4″ dia. flange and nut)	3″	2.6A/1.3A
